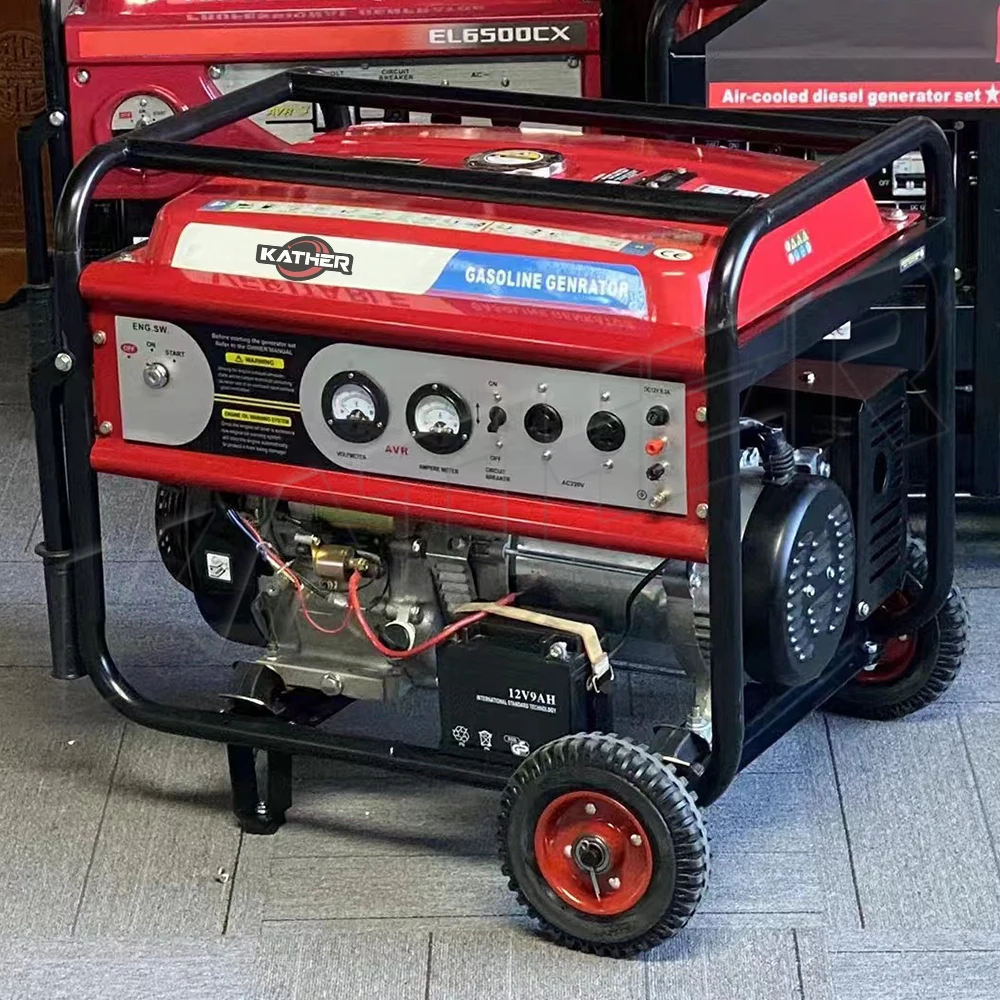

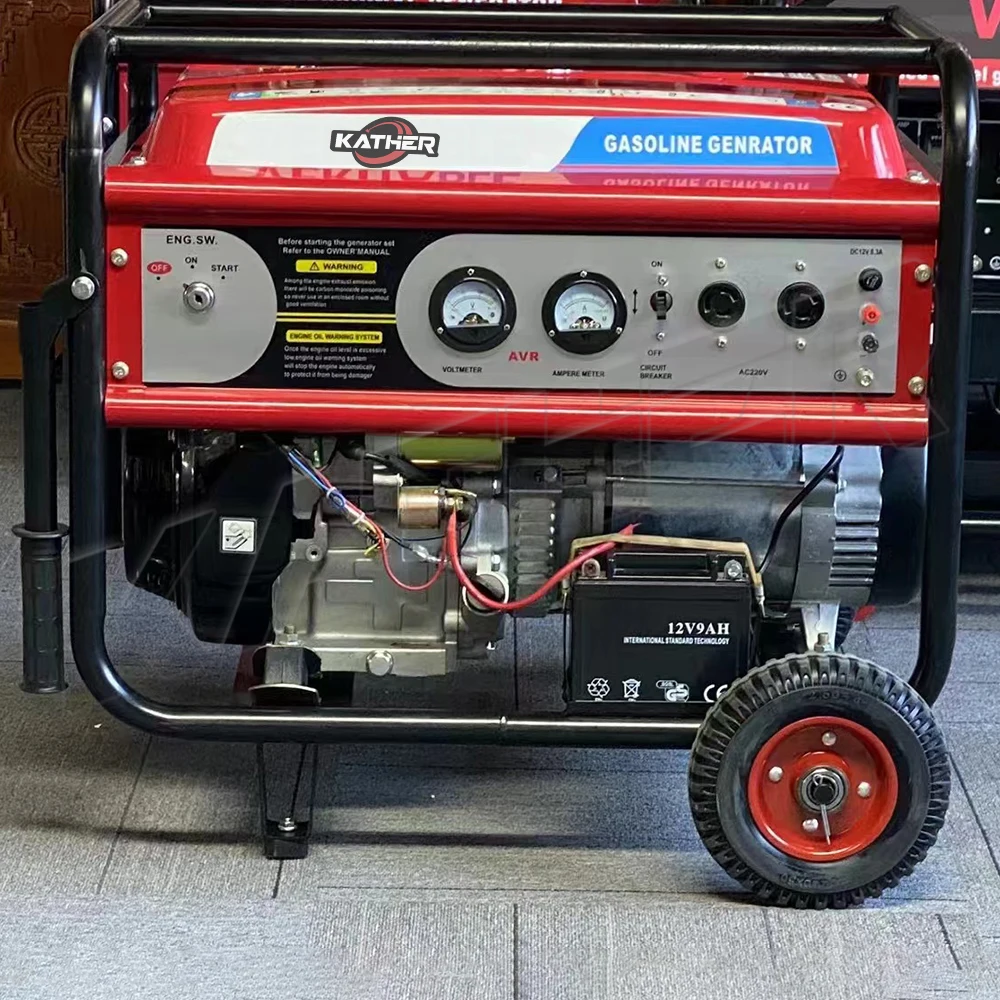

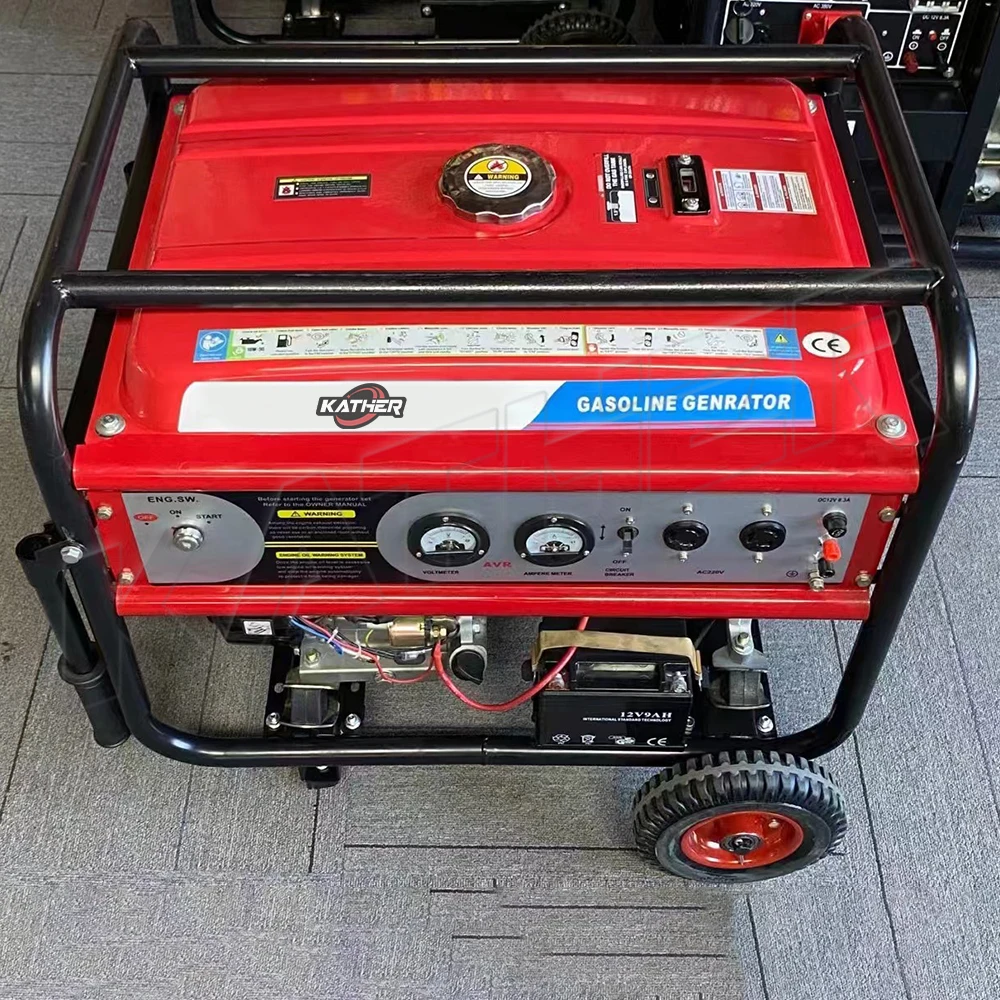

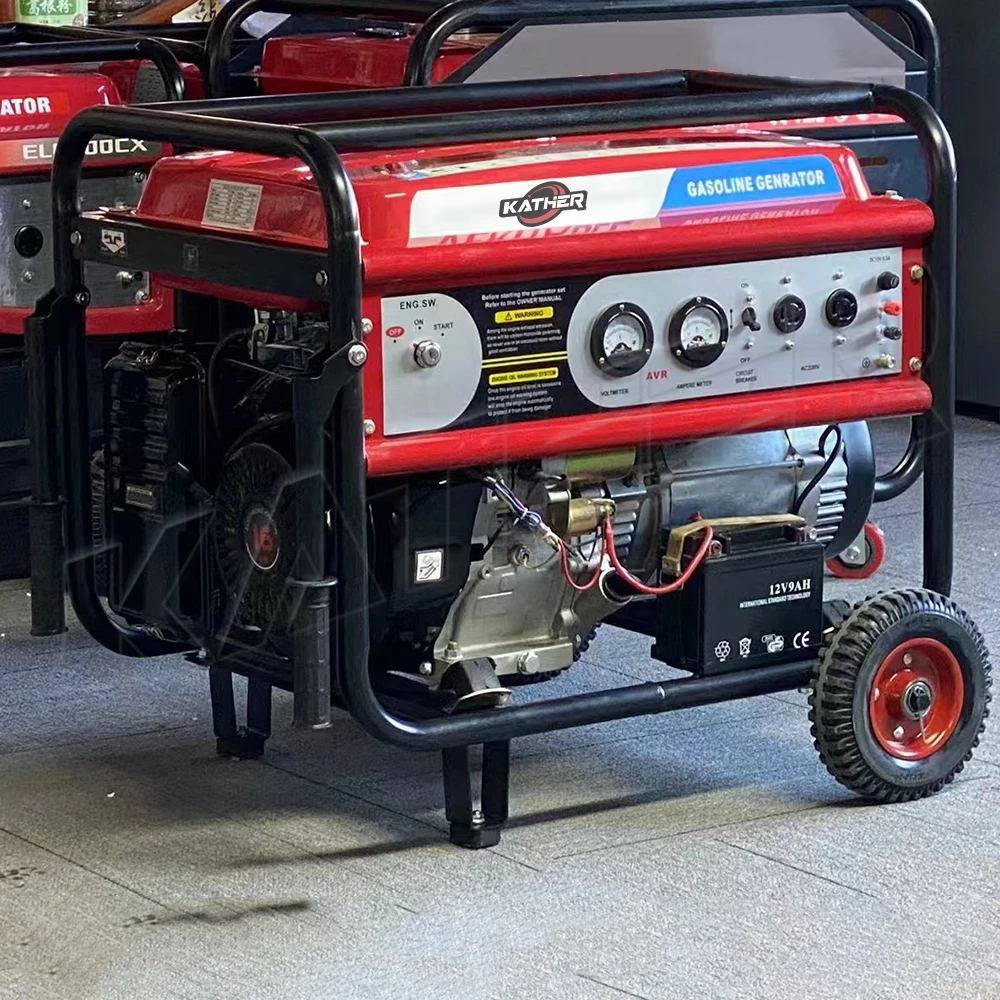

KATHER Portable Open Frame Gasoline Generator Hand/Electric Start Dual Voltage 3Kva 5kw 6.5kw 8kw 10kw Petrol Generator 50/60hz

KATHER Portable Open Frame Gasoline Generator Hand/Electric Start Dual Voltage 3Kva 5kw 6.5kw 8kw 10kw Petrol Generator 50/60hz

This generator can be used for a variety of power needs. It boasts a rugged open frame construction for optimal airflow to prevent the system from overheating after hours of use. With several power capacities from to 3kw, 5kw, 6.5kw, 8kw, 10kw and more, this generator is designed for a variety of applications from home back-up to industrial power. It can choose different voltages of the power supply system. The hand start and electric start makes it both easy and dependable.

Product Description

MODEL	3kw	5kw	6.5kw	8kw	10kw
Engine Type	170F	177F	190F	192F	195F
Bore x Stroke	70x55mm	77x58mm	90x66mm	92x69mm	95x672mm
Rated Voltage	220V	220/380V	220/380V	220/380V	220/380V
Max. Output	3.0kW	5.5kW	7.0kW	8.0kW	10kw
Rated Output	2.8kW	5.0kW	6.5kW	7.5kW	9.5kw
Rated Frequency	50Hz	50Hz	50Hz	50Hz	50Hz
WSSi/Power Factor	1	1	1	1	1
Phases	Single/Three Phase	Single/Three Phase	Single/Three Phase	Single/Three Phase	Single/Three Phase
Starting System	Recoil/Electric Start
Voltage regulator system	AVR
Fuel tank capacity	15L	15L	25L	25L	25L
Lubrication capacity	0.6L	1.1L	1.1L	1.1L	1.1L
Noise	≤75dB	≤75dB	≤76dB	≤76dB	≤76dB
Fuel consumption	≤374g/kWh	≤374g/kWh	≤370g/kWh	≤370g/kWh	≤370g/kWh
ubricalion consumption	≤6g/kWh	≤6g/kWh	≤6g/kWh	≤6g/kWh	≤6g/kWh
Dimension	605x450x475mm	695x530x580mm	695x530x580mm	695x530x580mm	800×620×700mm
Gross weight	49kg	65kg	82kg	86kg	110KG

Q1:Are you a factory or a trading company?

A:We are a factory.

Q2:What is the main products of your factory?

A:Agricultural Machinery,Walking Tractor,Power Tiller&Cultivator,Generator,Water Pump,Engine,Lawn Mower,Snow Blower,Rotary Tiller,Agricultural Machinery Parts,etc.

Q3:Where is your factory located?

A:Our factory is located in Dazu Industrial Park, the hardware capital of Chongqing, China.

Q4:Do you support customization?What's the MOQ?

A:Of course, We have 15 years of production customization experience in OEM/ODM. 1 set

Q5:How can i order and make payment?

A:Once clear your requirement which product is ideal for you.We will send proformainvoice to you.You can pay via Trade Assurance,T/TBank,WesernUnion,Credit Card or Paypal as you like.

Q6:What are your payment terms?

A:T/T 30% deposit, 70% balance to be paid when the goods are ready. If you have special payment needs, please discuss with our sales staff first.

Q7:How long is your warranty?

A:1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order.
