5KVA 8KVA 10KVA 12KVA 15KVA Silent Diesel Generators Set 110V 240V 380V 1 Phase/3 Phase Portable Mobile Type Generador Diesel

Product Description

Get the Hightlights

Low Noise design:Our generador diesel with a professional silent enclosure, high-efficiency sound-absorbing cotton and shock-absorbing structure, this generator effectively isolates engine noise and vibration from the source.
Portable & Modular Compact Layout: This portable silent diesel generator control panel is organized into clear, modular function zones for intuitive operation, while the generator's compact footprint and ergonomic design enable easy transport and quick deployment for outdoor construction, emergency rescue, and mobile power applications.
Multi-voltage output design: Our generadores eolicos diesel supports dual voltage output, and is also equipped with DC interface to meet the charging needs of industrial equipment, household loads, and vehicle charging in different countries/regions.
Intelligent safety protection: Intuitively displays the unit's operating status and fault warnings for quick troubleshooting. One-button overload/short circuit protection effectively prevents circuit burnout and ensures electrical safety.
ATS automatic switching function:generador inverter built-in ATS interface automatically detects the mains power status, instantly starts the dynamo generator in case of power failure, and automatically switches back to mains power after restoration. Suitable for uninterrupted power supply scenarios such as data centers, medical equipment, and communication base stations.
Stable and reliable industrial-grade performance: Single-cylinder engine structure, low maintenance costs; CE certified and ISO standard quality, supports OEM/ODM customization.

SPECIFICATIONS

5KVA 8KVA 10KVA 12KVA 15KVA Silent Diesel Generators Set 110V 240V 380V 1 Phase/3 Phase Portable Mobile Type Generador Diesel supplier

Model

MCD6500S

MCD8500S

MCD10500S

MCD12000S

MCD15000S

MCD20000S

Max Output

5.5KW

8KW

10KW

13KW

16KW

20KW

Rated Output

5KW

7.5KW

9KW

12KW

15KW

18KW

Rated AC Voltage

110V/220V/380V Vselectable

Engine Mode

188F Diesel

192F Diesel

195F Diesel

2V88F Diesel

2V92F Diesel

2V95F Diesel

Engine Speed

3000r/min

Fuel Tank Capacity

15L

25L

Lubrication Oil Volume

1.65L

2.6L

3.2L

3.8L

Starting System

Electric

Displacement

418cc

490cc

530cc

797cc

997cc

1063cc

Dimention

960*575*810mm

1330*685*920mm

Gross Weight

140KG

150KG

155KG

275KG

300KG

Super Silent 8KW 6KW 5KW Diesel Generator with All Copper 12V Electric Start 220V/400V/380V/110V 1500rpm 50/60Hz Silent ATS Small Home Use Silent Diesel Generator 10KVA 15KVA 20KVA Silent Diesel Generators for Home High Quality Portable Silent Diesel Generator 10kw 12kw 15kw Electrical Generators for Home Silent Diesel Genset Portable Diesel Generators

DETAIL SHOT

5KVA 8KVA 10KVA 12KVA 15KVA Silent Diesel Generators Set 110V 240V 380V 1 Phase/3 Phase Portable Mobile Type Generador Diesel details

5KVA 8KVA 10KVA 12KVA 15KVA Silent Diesel Generators Set 110V 240V 380V 1 Phase/3 Phase Portable Mobile Type Generador Diesel factory

5KVA 8KVA 10KVA 12KVA 15KVA Silent Diesel Generators Set 110V 240V 380V 1 Phase/3 Phase Portable Mobile Type Generador Diesel manufacture

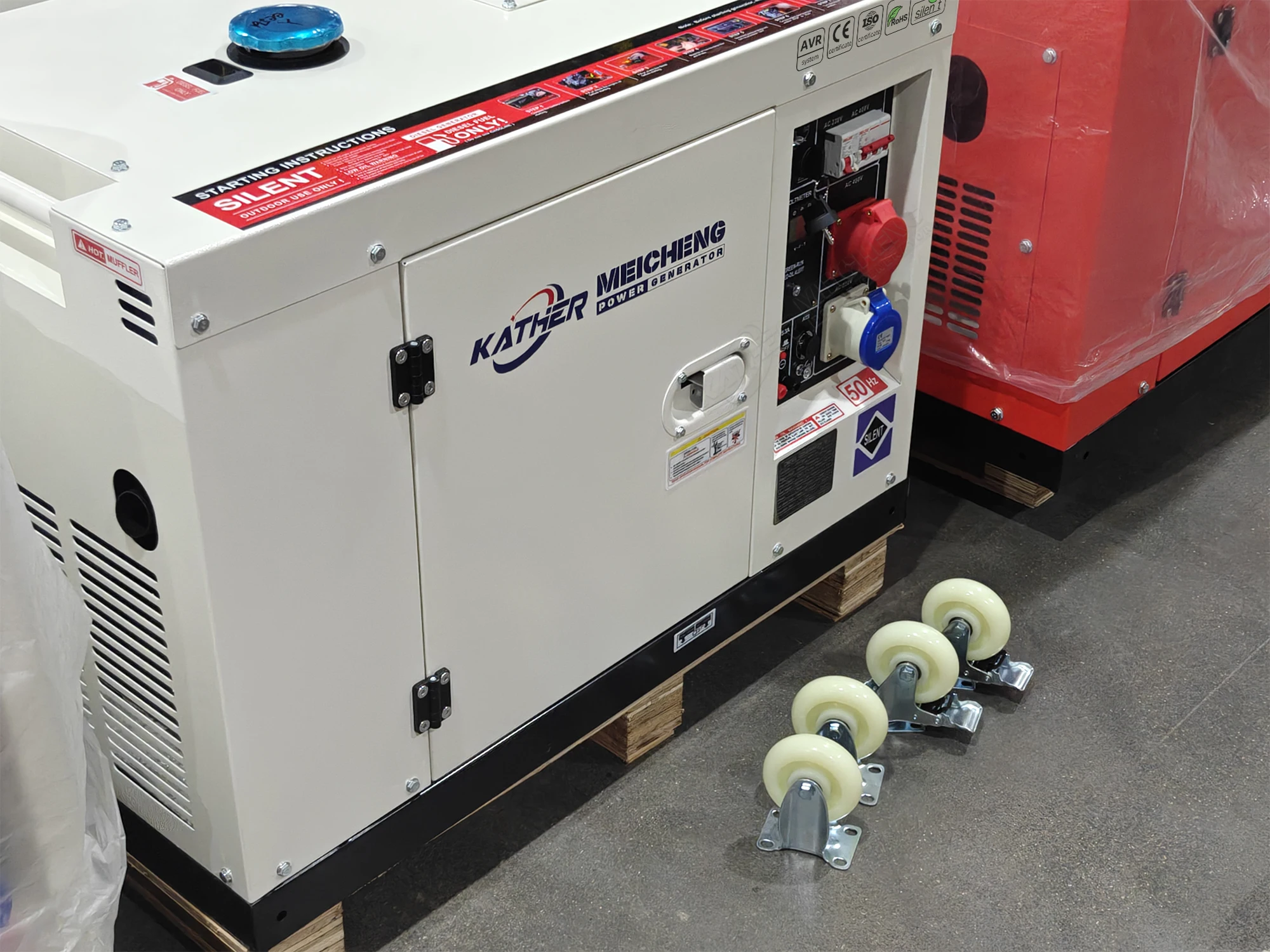

This portable silent diesel generator is equipped with industrial-grade swivel casters, making heavy-duty transport efficient and convenient. The wear-resistant nylon wheels can glide smoothly on rough terrain such as gravel and concrete surfaces at construction sites, while the 360-degree rotating design allows for easy maneuverability even in confined spaces.

Our portable diesel silent generators undergo rigorous factory simulation testing before leaving the factory. Professional load cabinets simulate full-load operation under real working conditions to comprehensively verify core performance indicators such as voltage stability, frequency accuracy, load response, noise reduction effect, and safety protection mechanisms, leaving no detail overlooked.

SCENE IMAGE

ABOUT THE SUPPLIER

About Chongqing Meicheng Machinery Parts Co., Ltd.Established in 2008 and headquartered in Chongqing, Meicheng Machinery is a premier manufacturer integrating R&D, production, and global trade. Our core competitive advantage is a strategic dual-base layout spanning 20,000+ square meters across China's two most vital machinery industrial clusters. By aligning production with local supply chain strengths, we deliver unmatched quality and cost-efficiency.Our Fujian Base, the Alternators & Diesel Hub, leverages China's core diesel cluster to specialize in heavy-duty solutions like Diesel Generator Sets, Industrial Alternators, Diesel Engines, and High-Pressure Pumps, ensuring robust performance through top-tier supply chains.Our Chongqing Base, the Gasoline & Agri-Machinery Hub, is situated in China's small engine capital. It leads in versatile gasoline applications including Gasoline Generators, Agricultural Machinery, Garden Equipment, and Portable Pumps, offering superior innovation and rapid customization within the world's largest gasoline ecosystem.Both facilities adhere to ISO 9001:2008 and CE standards, ensuring rigorous international safety and quality. Guided by "Quality First, Customer Priority," our team of 100+ experts delivers rapid OEM/ODM customization to align with your local market needs.With trusted partnerships across South America, Africa, Southeast Asia, Europe, and the USA, Meicheng Machinery combines regional manufacturing strengths with reliable after-sales support, positioning us as your long-term strategic partner for global energy and machinery solutions.

COMPANY OVERVIEW

FACTORY PROFILE

PRODUCTION WORKFLOW

COMPETITIVE ADVANTAGES

CUSTOMIZATION CAPABILITIES

TRADE SHOW PARTICIPATION

REPAIR AND MAINTENANCE

Maintenance and Care1.Engine OilCheck oil level before use/after shutdown; add if low.Change oil at 10h (1st use), 50h (2nd), 200h (3rd); check viscosity and change if thick.2.FiltersClean oil/air filters at each oil change.3.BatteryDisconnect negative terminal and charge monthly; skip if ATS-equipped.4.Common FaultsHard start: Check battery, fuel system (air ingress from empty tank), injectors.Power loss: bad fuel, overheating, cylinder wear.Abnormal noise: Check mechanical parts.

CLIENT CASES

PRODUCT CERTIFICATION

PACKAGING & SHIPPING SPECIFICATIONS

FAQs

Q: Are you a factory or a trading company?

A: We are a manufacturing enterprise with an foreign trade team.

Q: What is the main products of your factory?

A: We supply a wide range of agricultural machinery, power tillers & rotary cultivators,diesel & gasoline generators,lawn mowers and high-quality OEM/aftermarket parts for farm machinery.

Q: Where is your factory located?

A: Our factories are located in Chongqing and Ningde (Fujian), two major industrial hubs for machinery in China, offering strong production capacity and stable supply.

Q: Can you supply OEM &ODM service?

A: Of course, We have 15 years of production customization experience in OEM/ODM.

Q: What is your sample policy?

A: Yes,please understand our sample will be charged.If the order quantity is large,the sample fee can be discounted.

Q: How to ensure product quality?

A: Prior to mass production of the order,we will produce and test samples,and proceed with bulk production only after customer confirmation.We will provide feedback on the product production progress.Once production is completed,we will conduct quality inspections as per your requirements and provide photos and videos.

Q: What is your delivery time?

A: Generally,delivery is possible within 7-25 days after receipt of prepayment.Actual delivery time depends on the quantity and product ordered.

Q: What are your payment terms?

A: T/T 30%deposit,70%balance to be paid when the goods are ready.If you have special payment needs,please discuss with our sales staff first.
