Model |

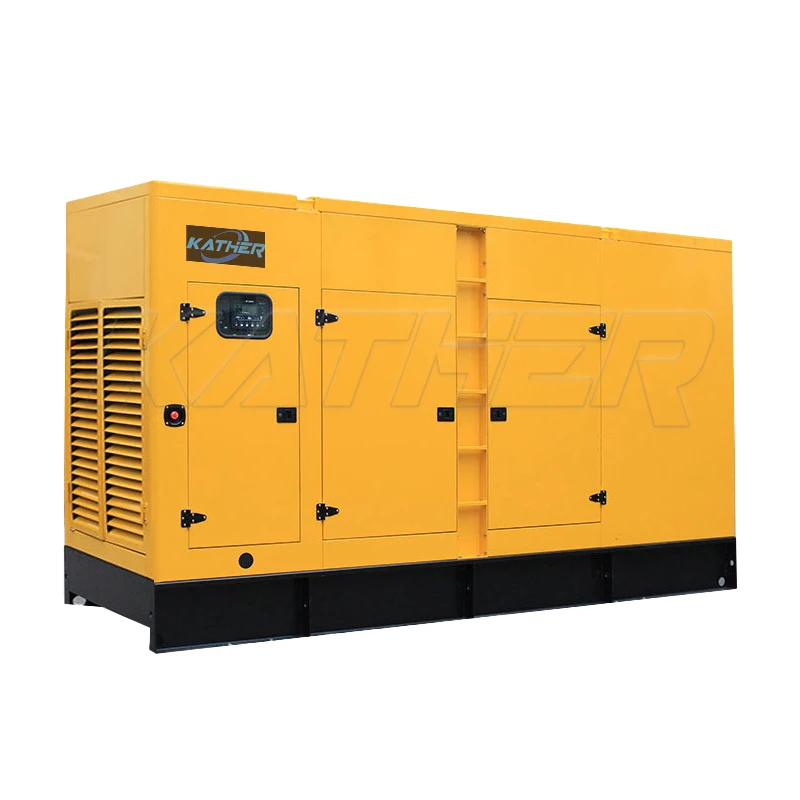

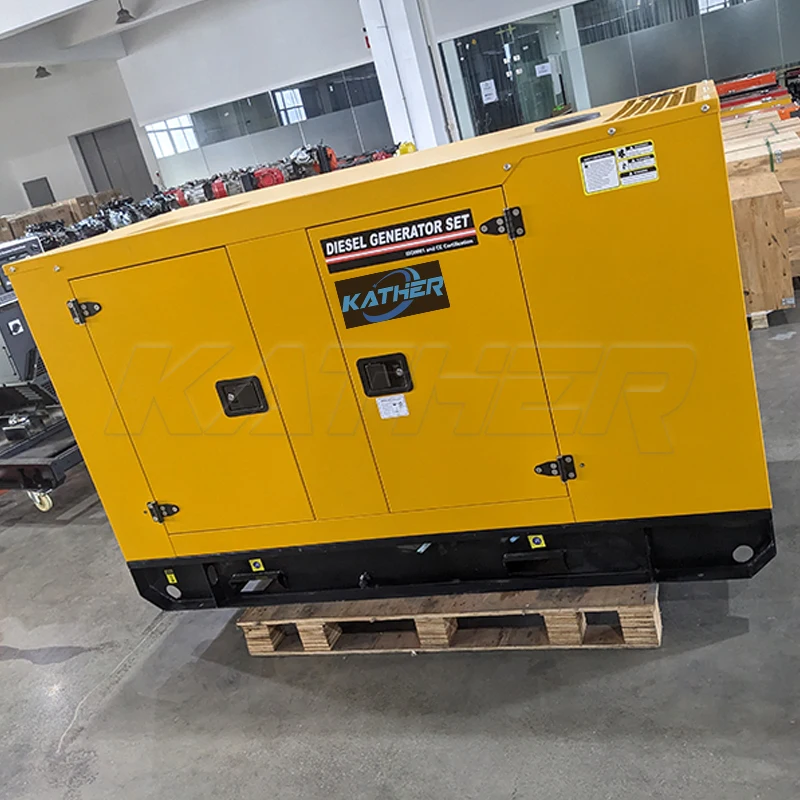

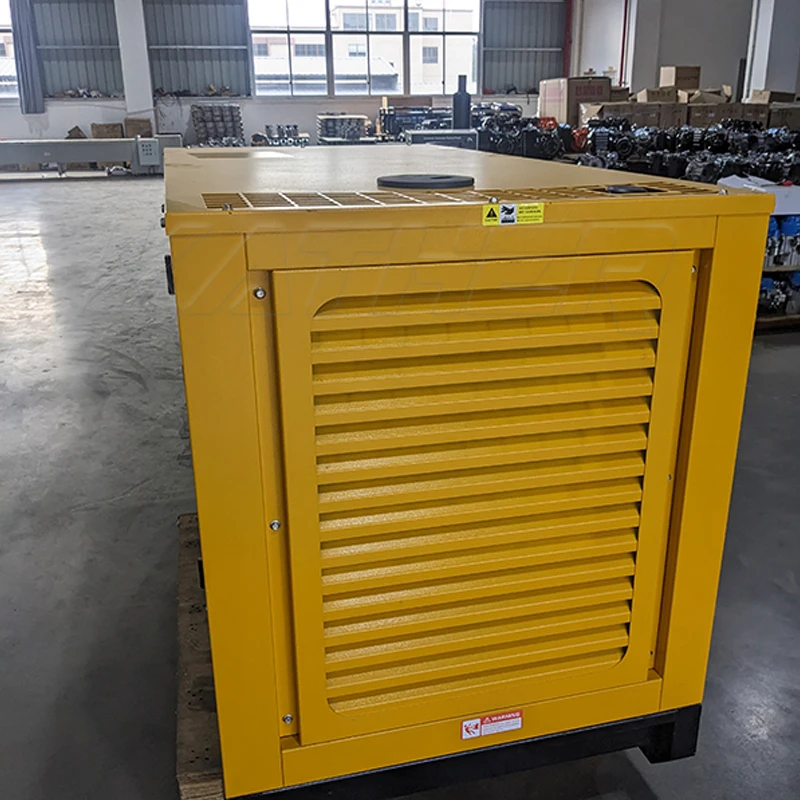

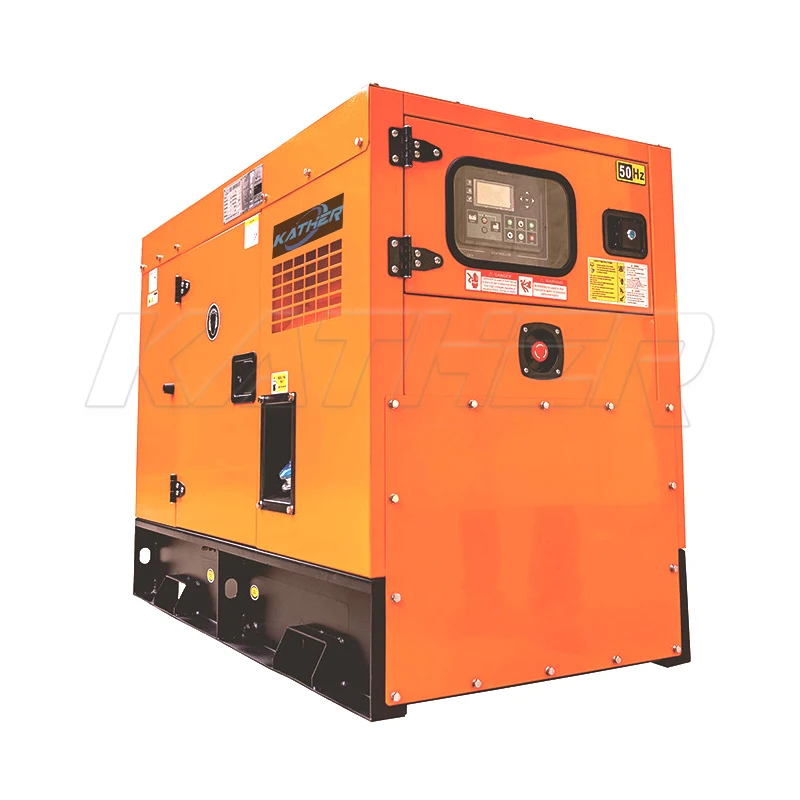

4 Cylinder Diesel Silent Generator |
||||||
Power of generator set（KW） |
30kW |
50kw |
80kw |
100kw |
|||
Generator set voltage（V） |
400/230V |
||||||
Generator set capacity（KVA） |
37.5KVA |
62.5KVA |
100KVA |
125KVA |
|||
Generator set current（A） |
54A |
90a |
144a |
180a |
|||
Number of phases/lines of generator set |
三相四线Three phase four wire |
||||||
Electric power factor |
C0Sϕ=0.8 (lag，滞后) |
||||||
LP7m Reference noise LP7m |
108db |
||||||
Generation efficiency |
80% |
||||||
Unit frequency |
50Hz |
||||||
Unit speed |
1500rpm |
||||||
Cooling mode |
闭式循环水冷Closed circulating water cooling |
||||||
Compression ratio |
16:01 |
16:01 |
16:01 |
16:01 |
|||
Startup mode |
电启动Electric starting |
电启动Electric starting |
电启动Electric starting |
电启动Electric starting |
|||
Engine Displacement(cc) |
3.76L |
5.68L |
6.5L |
6.75L |
|||
Number of cylinders |
4-cylinder |
4-cylinder |
4-cylinder |
4-cylinder |
|||
Oil capacity(L) |
7L |
9L |
15L |
20L |
|||
Air intake mode |
自然吸气Natural inspiration |
||||||
outside size L,W,H mm |
2000*900*1200mm |
2150*900*1200mm |
2600*1130*1550mm |
2900*1050*1450mm |
|||
Weight (kg) |
850kg |
1250kg |
1320kg |
1500kg |
|||
